Clean Power Store  |  SKU: S-FOXAIO114_20-US

Fox ESS PowerQ All-in-One Residential Energy Storage System | Power-Q Series

$6,589.99
Shipping calculated at checkout.

Fox ESS PowerQ Variants

Buy Now

Shipping

1 to 2 days of handling time and 3 to 7 days of delivery

Fox ESS PowerQ All-in-One (AIO) System

Integrated hybrid inverter with scalable LFP battery for complete energy independence

Fox ESS PowerQ All-in-One System

The Fox ESS PowerQ All-in-One (AIO) system is a cutting-edge residential energy storage solution that seamlessly integrates a high-efficiency hybrid inverter with a scalable lithium iron phosphate (LFP) battery. Designed for both AC and DC coupling, the PowerQ AIO offers homeowners a reliable and flexible approach to energy independence.

It is the latest generation of an integrated residential energy storage system. With up to 80 kWh total backup capacity, PowerQ is designed to meet various backup scenarios via a modular system design and scalability.

Scalable Capacity

8kWh Starting Capacity

80kWh Max Capacity

Type 4X Enclosure Rating

Powerful Features

Powerful Features

High Efficiency

Achieves up to 97.6% maximum efficiency, ensuring optimal energy conversion.

Scalable Storage

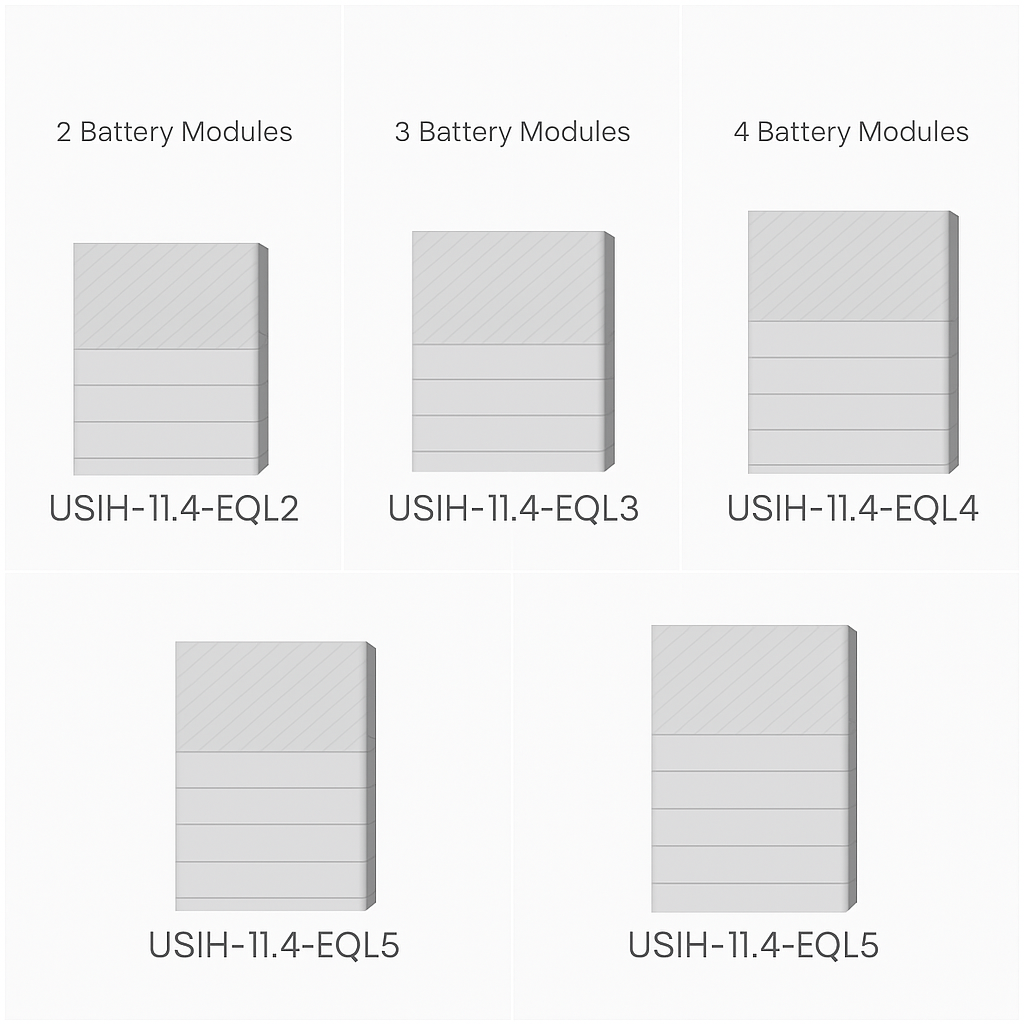

Modular design allows expansion from 8 kWh up to 80 kWh to meet varying energy needs.

Hybrid Inverter

Supports both AC and DC coupling for versatile system integration.

Robust Design

Type 4X enclosure rated for outdoor installation, operating in temperatures from -25°C to 55°C.

Smart Monitoring

Remote system monitoring via smartphone app or web portal for real-time performance tracking.

Certified Safety

Certified under UL9540, UL1741 SA/SB, IEEE1547, and other standards for safety and grid compliance.

Unmatched Performance

Continuous Power

11.4 kW

Base Capacity

20 kWh

Efficiency

97.6%

Temperature

-25°C-55°C

Technical Specifications

Technical Specifications

Core Specifications

Model: Fox ESS PowerQ AIO

Base Capacity: 20 kWh

Max Capacity: 80 kWh (4 units)

Battery Type: Lithium Iron Phosphate (LFP)

Performance

Inverter Output: 11.4 kW

Max. PV Input: 600 V

MPPT Range: 80 V - 550 V

MPPTs/Strings: 3 MPPTs / 4 Strings

Physical & Warranty

Dimensions: 22.4" x 49.7" x 15"

Weight: 526.9 lbs (239 kg)

Enclosure: Type 4X

Certifications: UL9540, UL1741 SA/SB, IEEE1547

Applications

Applications

Residential Solar

Ideal for homeowners seeking energy independence and backup power solutions.

Off-Grid

Suitable for remote locations requiring reliable energy storage.

Time-of-Use

Store energy during low-rate periods and utilize during peak-rate times.

Why Choose Fox ESS PowerQ AIO?

Why Choose Fox ESS PowerQ AIO?

Integrated Solution

Combines an inverter and battery in a single unit for simplified installation.

Flexible Configuration

Supports both AC and DC coupling, catering to various system designs.

Advanced Monitoring

Stay informed with real-time data accessible via mobile app or web portal.

Power Your Energy Independence

Empower your home with the Fox ESS PowerQ All-in-One Energy Storage System

UL certified | Professional installation support | Scalable solution

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Description

    Fox ESS PowerQ All-in-One (AIO) System

    Integrated hybrid inverter with scalable LFP battery for complete energy independence

    Fox ESS PowerQ All-in-One System

    The Fox ESS PowerQ All-in-One (AIO) system is a cutting-edge residential energy storage solution that seamlessly integrates a high-efficiency hybrid inverter with a scalable lithium iron phosphate (LFP) battery. Designed for both AC and DC coupling, the PowerQ AIO offers homeowners a reliable and flexible approach to energy independence.

    It is the latest generation of an integrated residential energy storage system. With up to 80 kWh total backup capacity, PowerQ is designed to meet various backup scenarios via a modular system design and scalability.

    Scalable Capacity

    8kWh Starting Capacity

    80kWh Max Capacity

    Type 4X Enclosure Rating

    Powerful Features

    Powerful Features

    High Efficiency

    Achieves up to 97.6% maximum efficiency, ensuring optimal energy conversion.

    Scalable Storage

    Modular design allows expansion from 8 kWh up to 80 kWh to meet varying energy needs.

    Hybrid Inverter

    Supports both AC and DC coupling for versatile system integration.

    Robust Design

    Type 4X enclosure rated for outdoor installation, operating in temperatures from -25°C to 55°C.

    Smart Monitoring

    Remote system monitoring via smartphone app or web portal for real-time performance tracking.

    Certified Safety

    Certified under UL9540, UL1741 SA/SB, IEEE1547, and other standards for safety and grid compliance.

    Unmatched Performance

    Continuous Power

    11.4 kW

    Base Capacity

    20 kWh

    Efficiency

    97.6%

    Temperature

    -25°C-55°C

    Technical Specifications

    Technical Specifications

    Core Specifications

    Model: Fox ESS PowerQ AIO

    Base Capacity: 20 kWh

    Max Capacity: 80 kWh (4 units)

    Battery Type: Lithium Iron Phosphate (LFP)

    Performance

    Inverter Output: 11.4 kW

    Max. PV Input: 600 V

    MPPT Range: 80 V - 550 V

    MPPTs/Strings: 3 MPPTs / 4 Strings

    Physical & Warranty

    Dimensions: 22.4" x 49.7" x 15"

    Weight: 526.9 lbs (239 kg)

    Enclosure: Type 4X

    Certifications: UL9540, UL1741 SA/SB, IEEE1547

    Download Full Datasheet
    Applications

    Applications

    Residential Solar

    Ideal for homeowners seeking energy independence and backup power solutions.

    Off-Grid

    Suitable for remote locations requiring reliable energy storage.

    Time-of-Use

    Store energy during low-rate periods and utilize during peak-rate times.

    Why Choose Fox ESS PowerQ AIO?

    Why Choose Fox ESS PowerQ AIO?

    Integrated Solution

    Combines an inverter and battery in a single unit for simplified installation.

    Flexible Configuration

    Supports both AC and DC coupling, catering to various system designs.

    Advanced Monitoring

    Stay informed with real-time data accessible via mobile app or web portal.

    Power Your Energy Independence

    Empower your home with the Fox ESS PowerQ All-in-One Energy Storage System

    UL certified | Professional installation support | Scalable solution
