12.96 KW Solar Panels DIY Grid Tie Kit with Microinverter & Racking On-Grid

Transform your energy independence with our cutting-edge DIY Grid-tie Solar Kit—a revolutionary solution that empowers homeowners to harness solar energy with unprecedented ease and affordability. Our meticulously engineered kit eliminates complex installation barriers, providing comprehensive, step-by-step guidance tailored to your specific property requirements. By combining high-efficiency solar panels, intelligent inverter technology, and a user-friendly installation manual, we've created a turnkey system that dramatically reduces electricity costs while contributing to sustainable energy production. The kit's modular design ensures seamless integration with existing electrical infrastructure, enabling you to generate clean, renewable electricity and potentially earn energy credits through net metering programs. Our dedicated technical support team stands ready to provide personalized assistance, ensuring a smooth transition to solar power that maximizes your investment, reduces your carbon footprint, and establishes a resilient, future-proof energy solution for your home.

Virtual site inspection:

We will provide you with the design plans. To prepare the plans, we will collect the required data from you and provide plan sets that are guaranteed to be approved by the city and utility. We can also provide revisions at no cost until your plans are approved by all types of jurisdictions.

If an engineering structure letter or stamp is required, we can also provide that. Engineering structure letter or stamp will cost between $200 to $600

20-year warranty: Twice the protection offered by competitors
PE Certified: Pre-stamped engineering letters available in most states

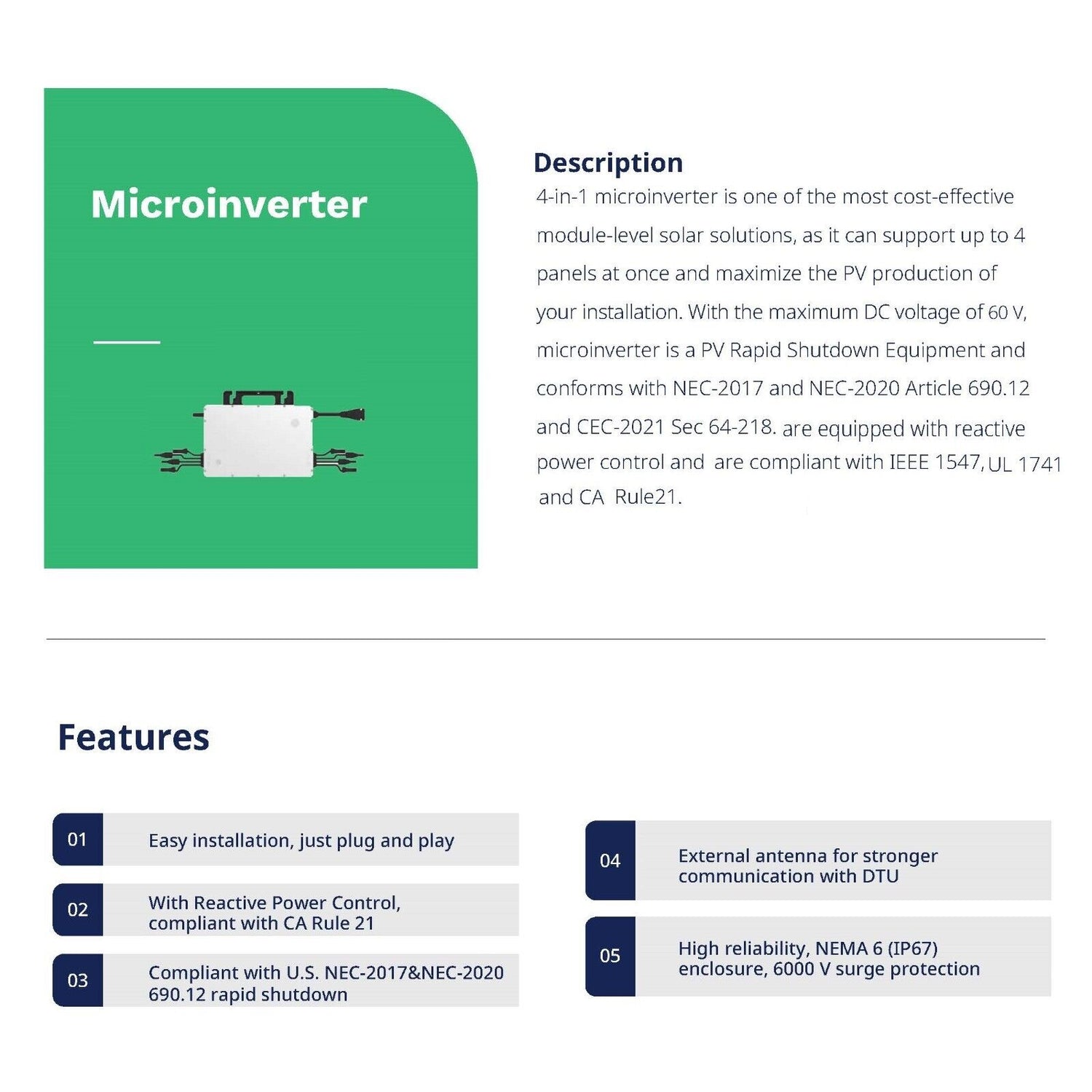

Micro-inverter:

4-in-1 microinverters are all built to deliver safety and stability you can count on. It is one of the most cost-effective module-level solar solutions, as it can support up to 4 panels at once and maximize PV production. Unlike high-voltage string inverter systems, our microinverters operate on less than 60 v DC voltage, supported by 6,000 v surge protection and IP67 enclosure ratings. Cloud monitoring also contains individual panel-level monitoring so you can spot the signs of a potential problem sooner. and keep your property safe, 24/7. You will get industry-leading microinverters with the lowest failure rates and premium components

• Easy installation, just plug and play.
• With reactive power control, compliant with ca rule 21.
• Compliant with u.s. Nec-2017& Nec-2020 690.12 rapid shutdown
• Up to 25 years warranty

Racking:

Every component has been tested to the limit and proven in extreme environments. All components are evaluated for superior structural performance our approach has led to unique structural features this is also why our products are fully certified. Integrated grounding: ul 2703 system eliminates separate module grounding components. Class a fire rating: certified to maintain the fire resistance rating of the existing roof.

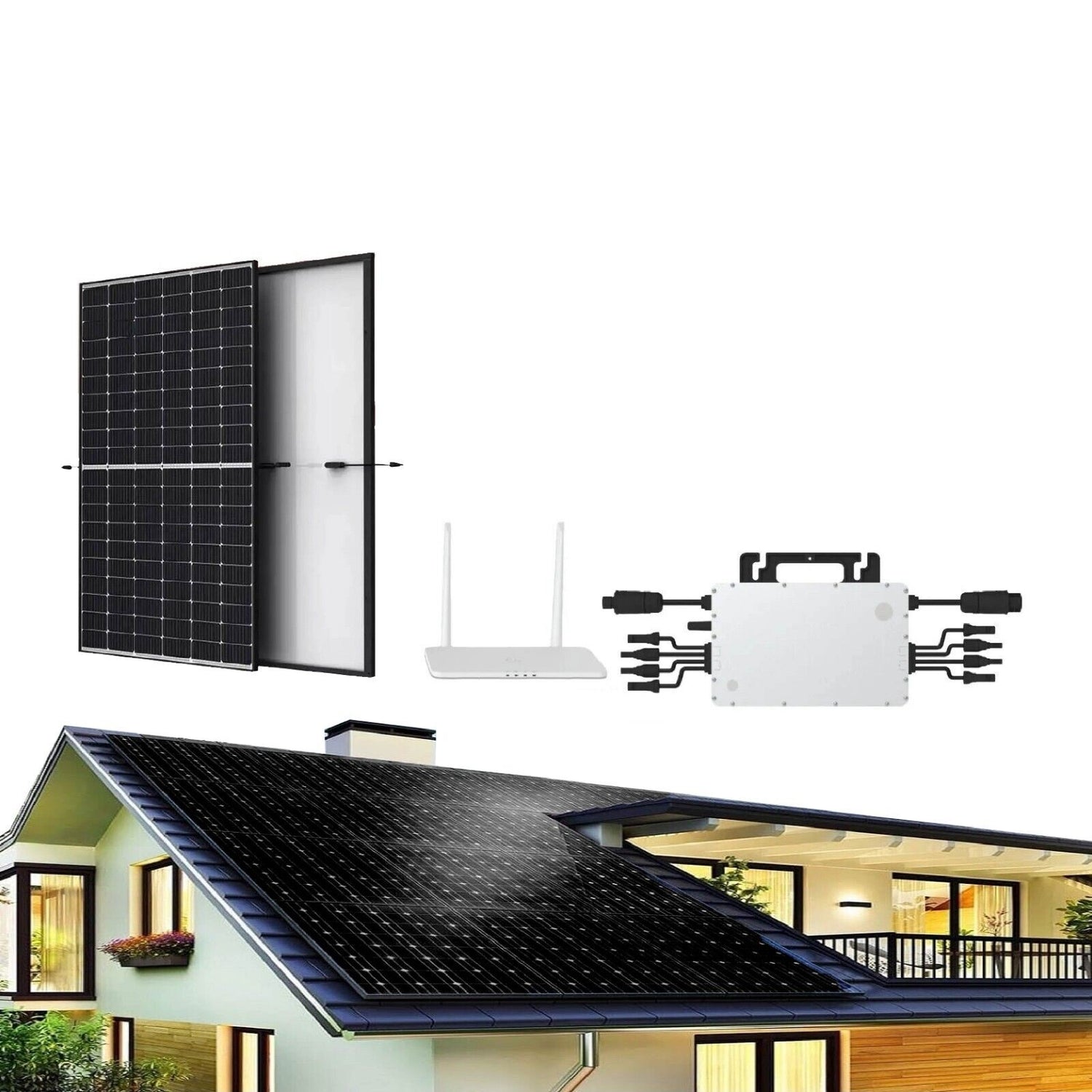

This System Includes

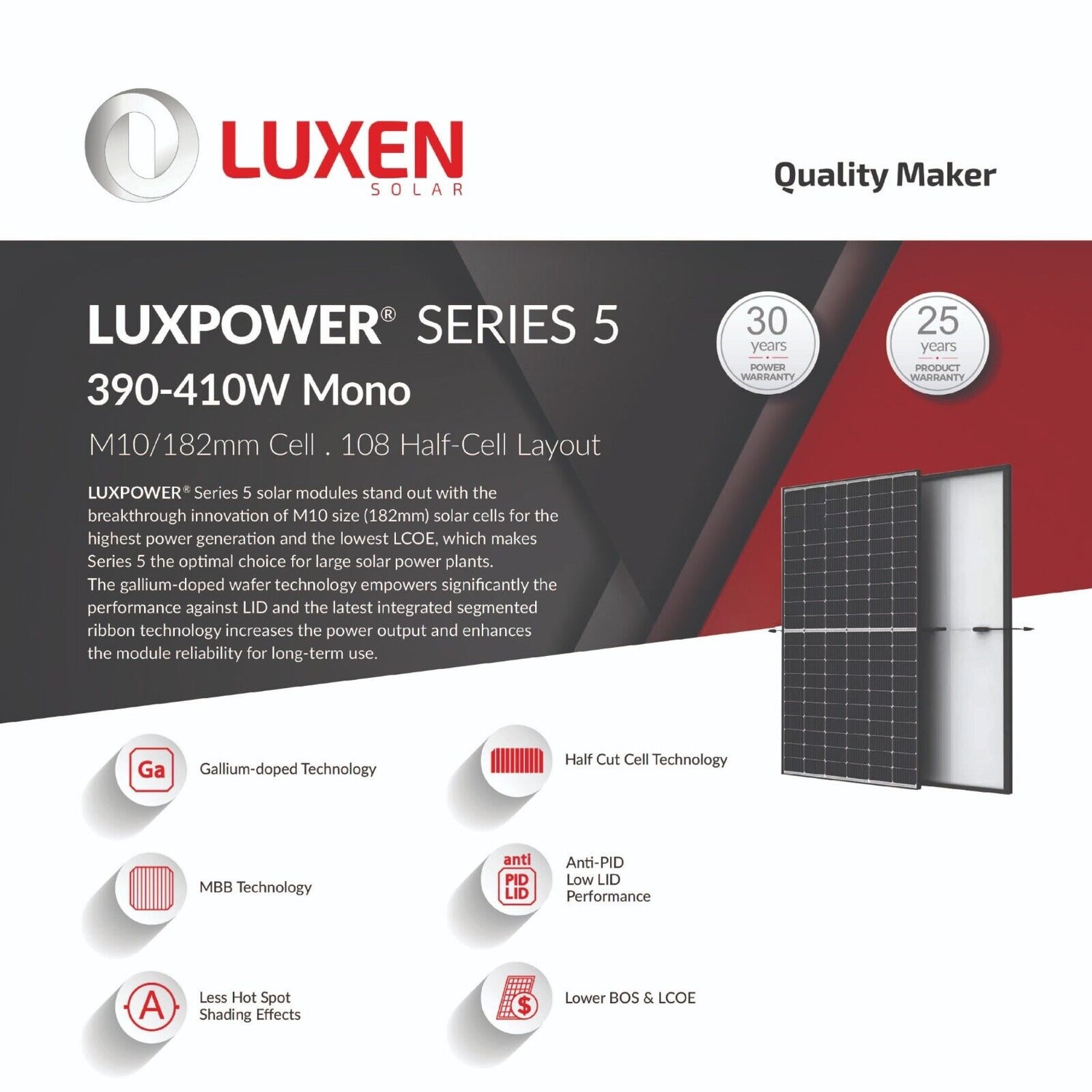

• Luxen solar DIY module
• Half Cell; Bifacial; Single Glass module (Up to 30% extra power generation yield from the back side)
• Black-on-Black module (perfect for your roof)
• Micro-inverter (four panels can be installed with one micro-inverter)

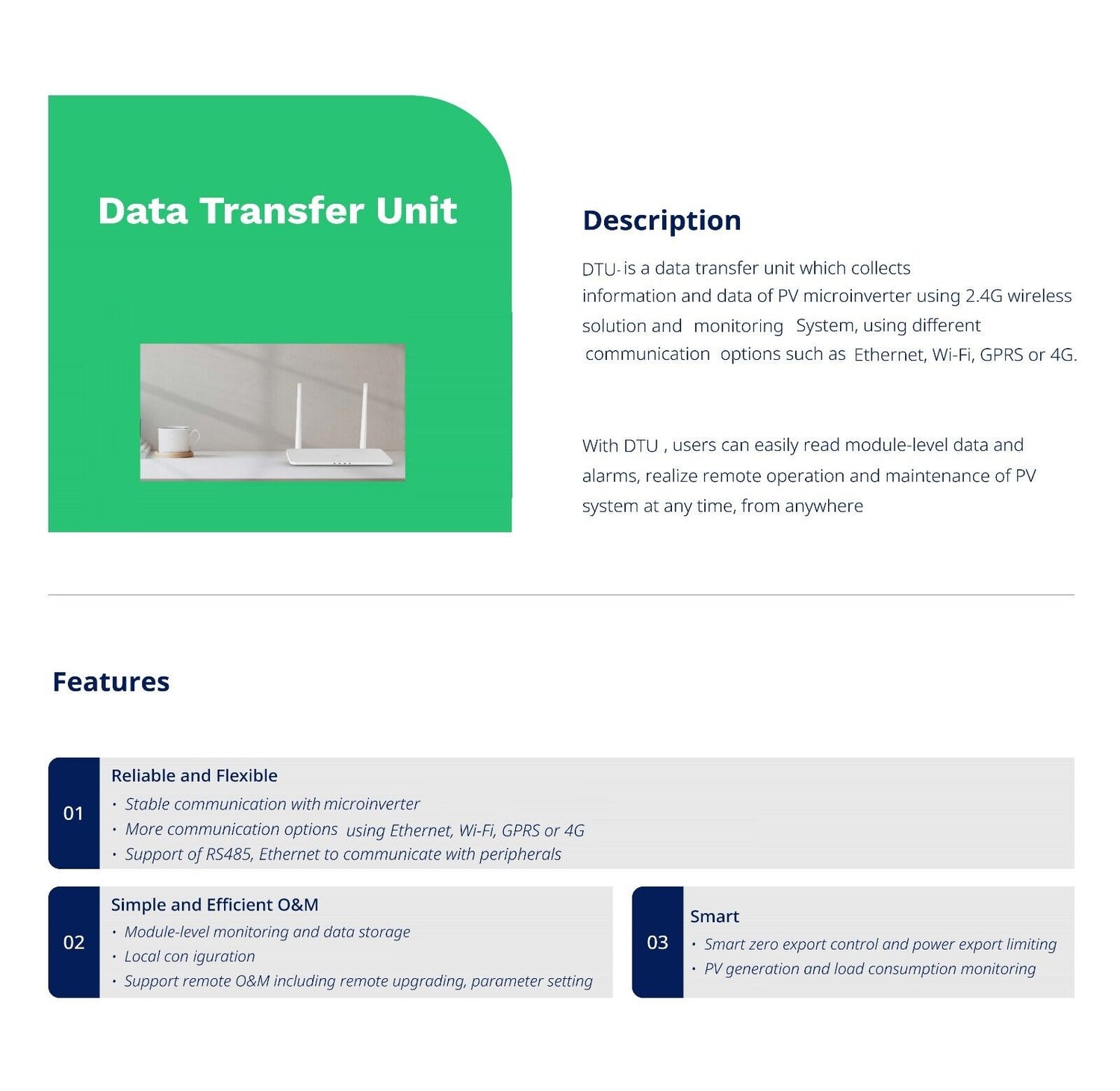

• Wi-Fi cloud monitoring system

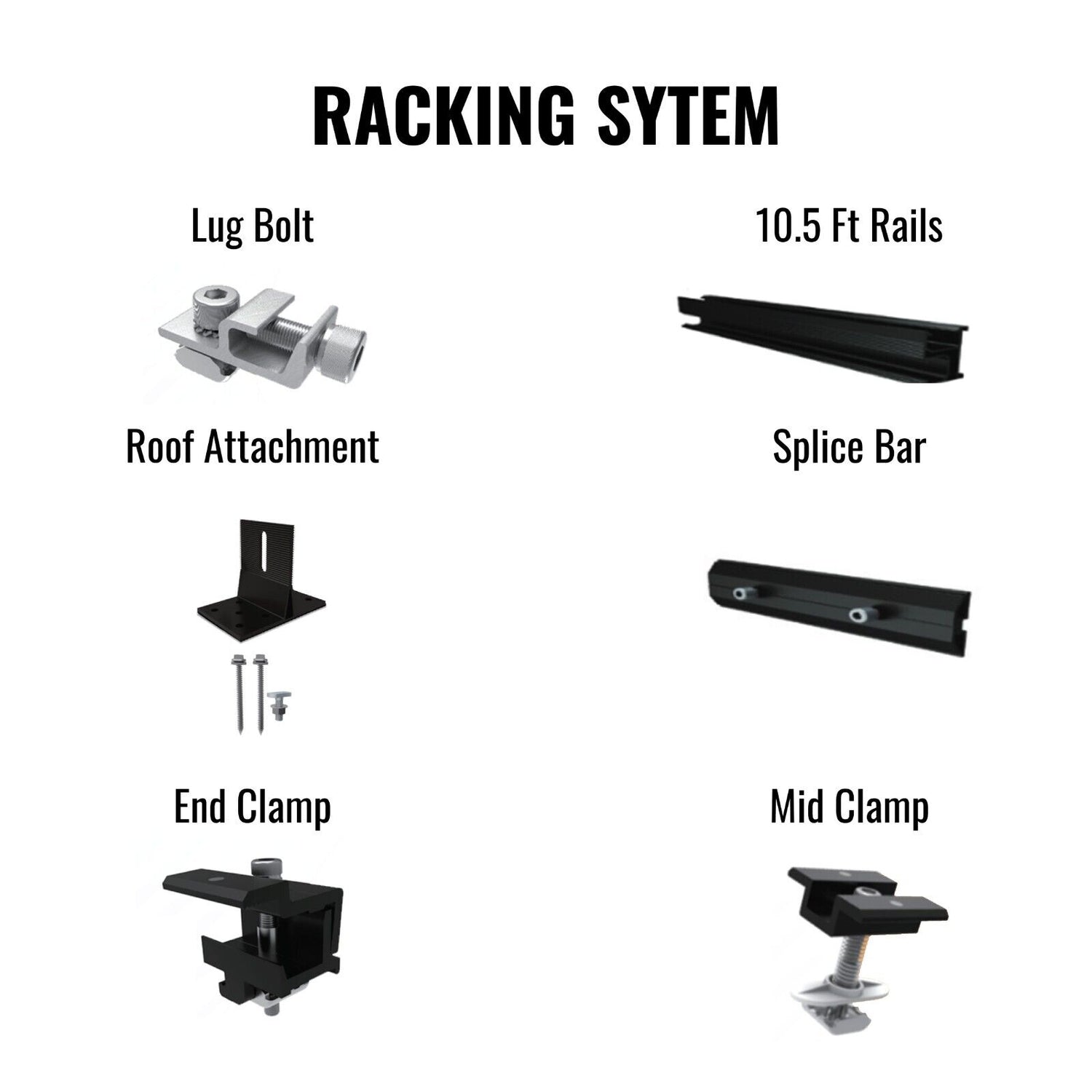

• Racking system with attachments

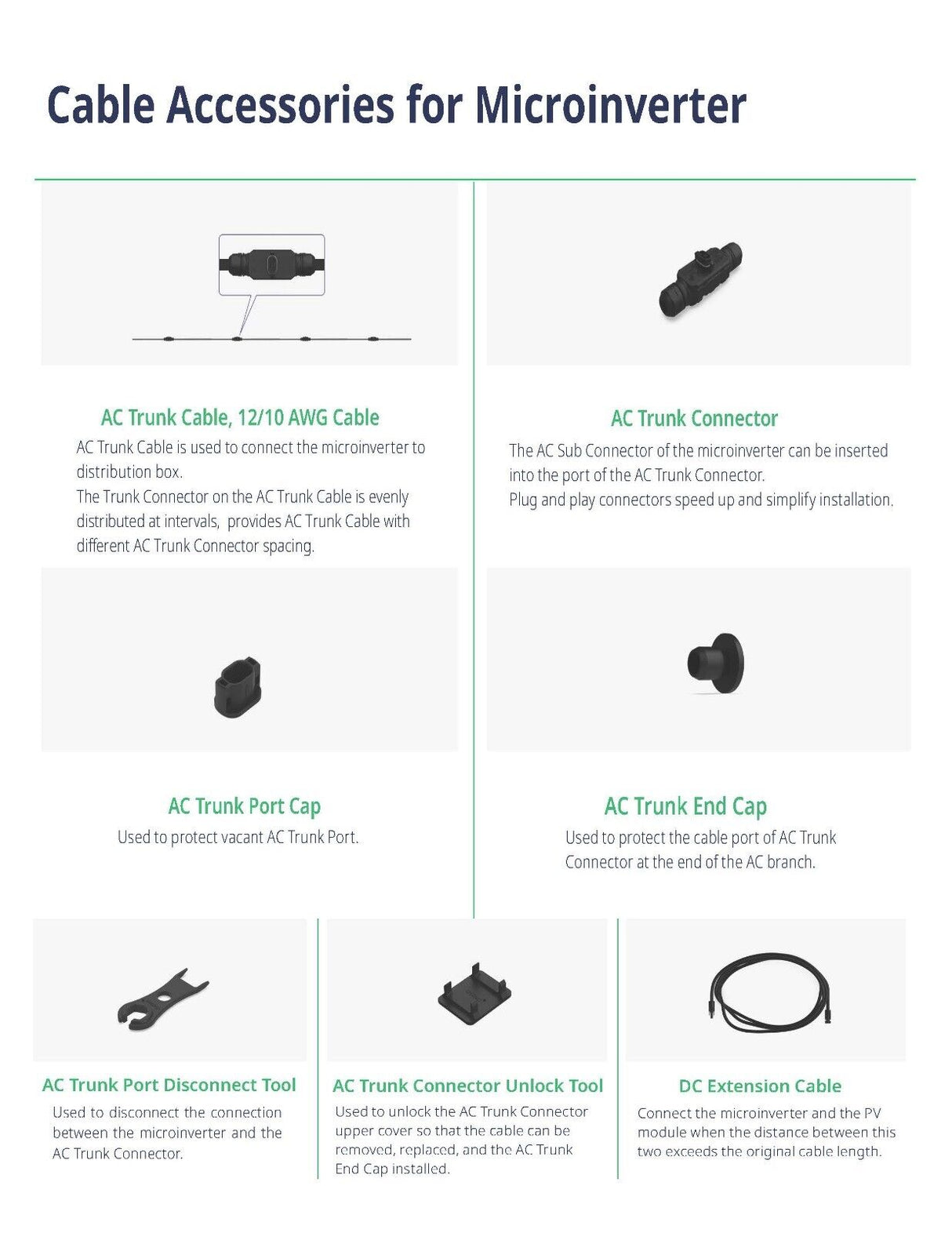

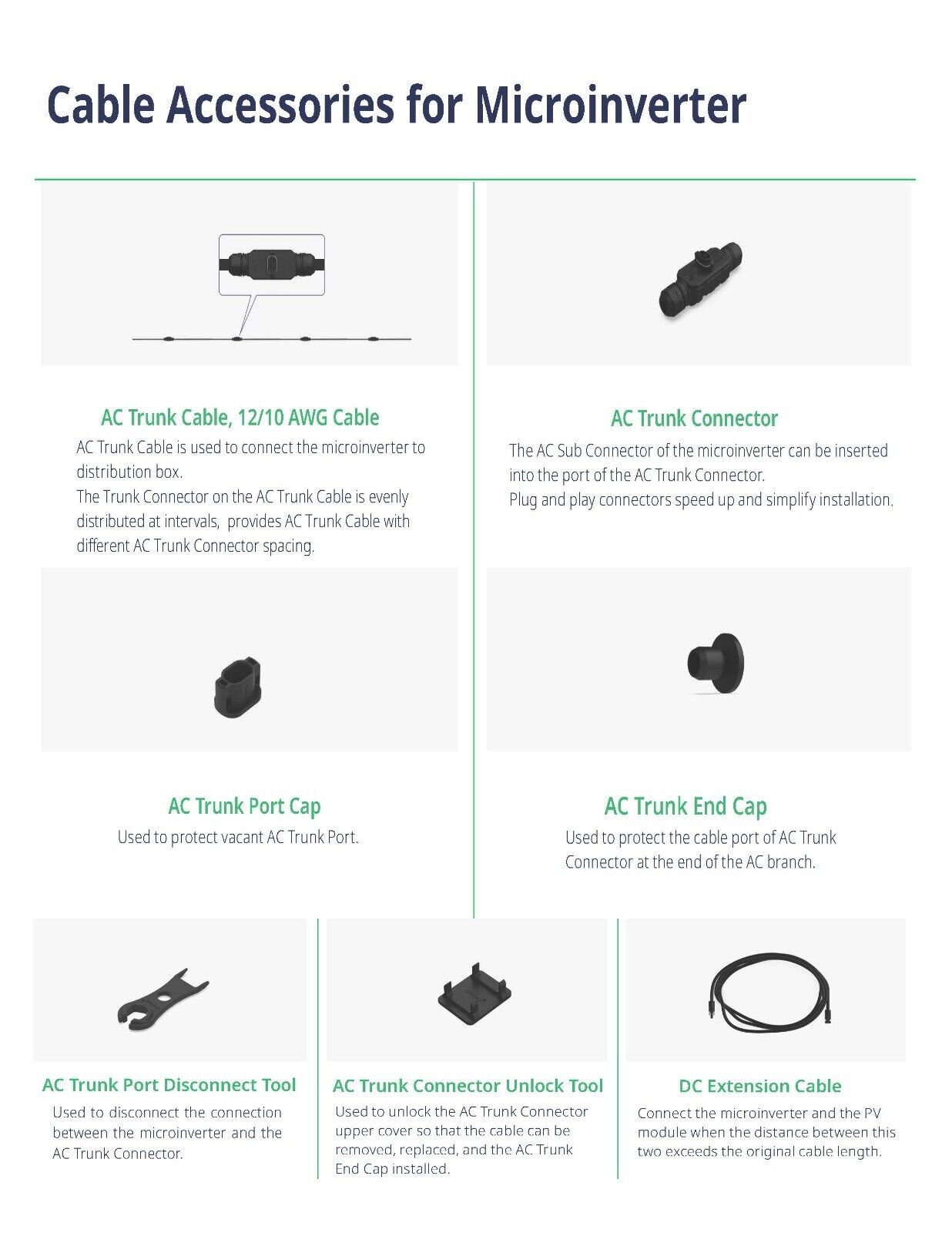

• Pv cable and connectors, micro-inverter cabling and connectors, utility disconnect box.
• Grid tie-in connectors and roof junction box are according to the plan set.

Additional equipment required:

All you need is wiring and conduit for the home run (from array to main service panel or meter)

Note: wiring is usually AWG 10 or 8 for this kit and the conduit you may use is 3/4 or 1-inch emt, PVC or flex liquid tight.

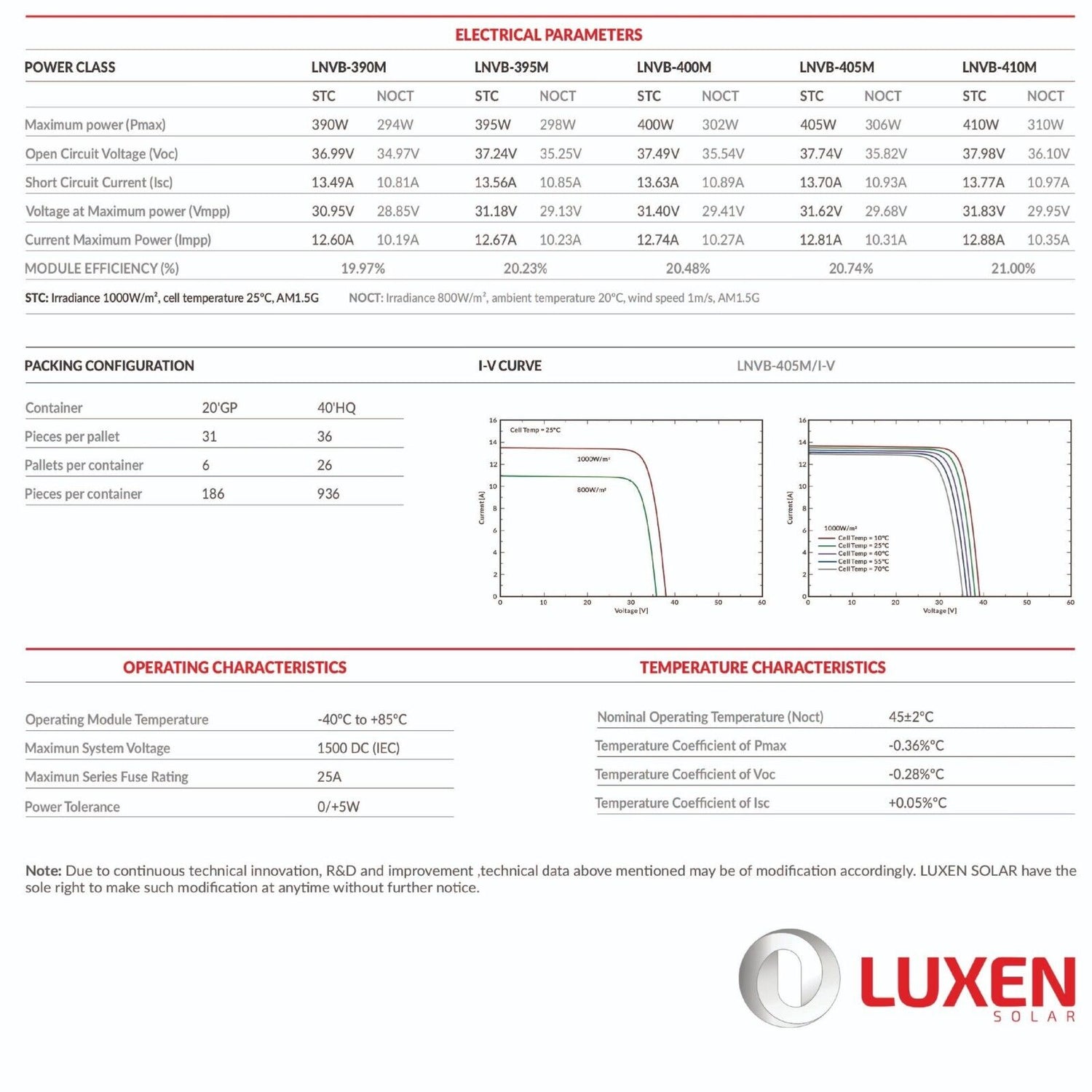

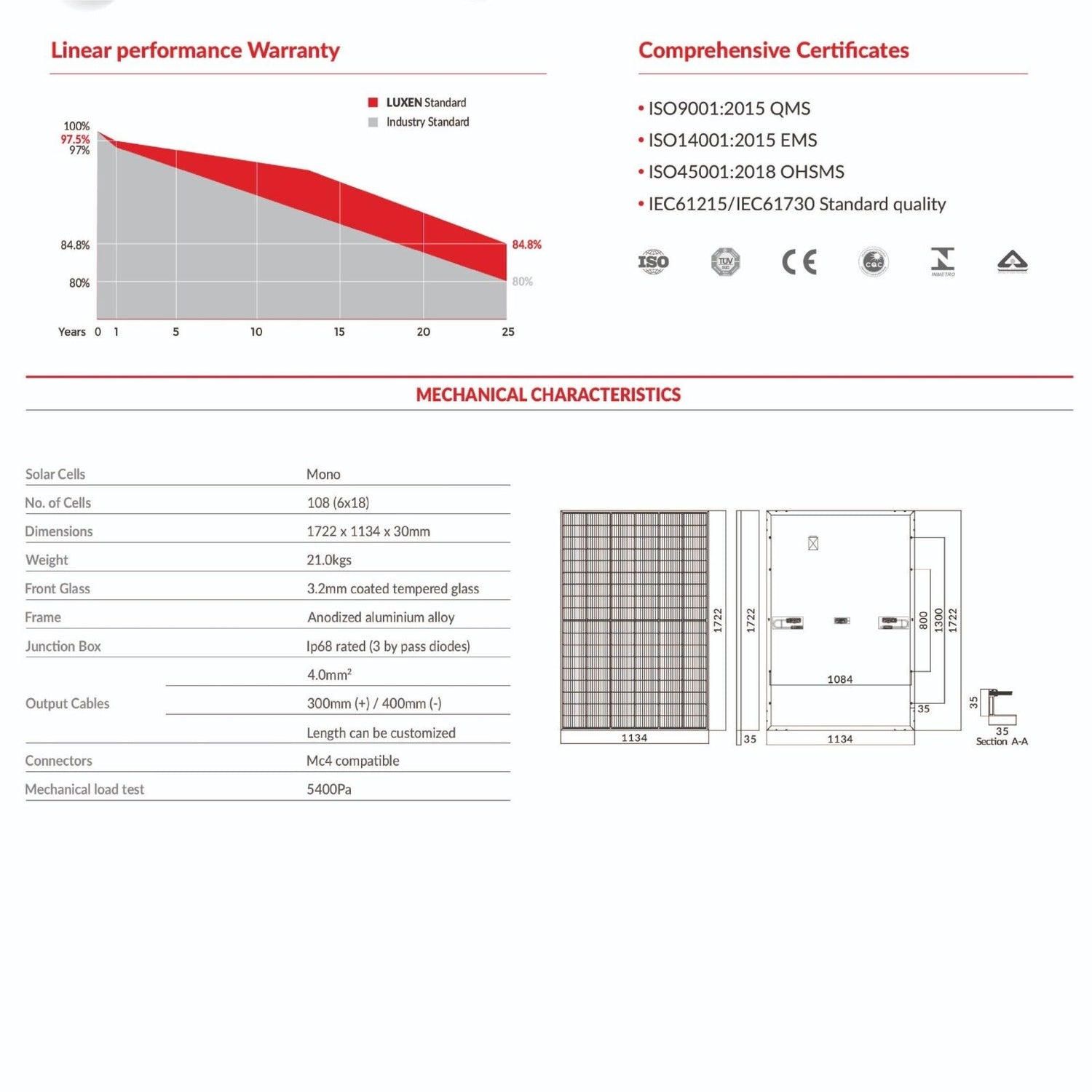

Panel warranty & Certification:

• 25-year Warranty for Materials and Processing
• 25-year Warranty for Extra Linear Power Output
• IEC 61215, IEC 61730 & UL 1703; UL 61730, IEC 62804 (PID)
• IEC 62716 (Ammonia Resistance), IEC 61701 (Salt Mist Level 6),
• ISO 9001: 2015, ISO 14001: 2004, OHSAS 18001: 2007
