CPS Pro 5kW | DIY Solar Grid-Tie Kit

Name: CPS Pro 5kW | DIY Solar Grid-Tie Kit
Brand: Clean Power Store
Price: 10000.00 USD
Availability: InStock

$10,000.00 ~~$12,999.00~~

Shipping calculated at checkout.

Buy Now

Shipping

1 to 2 days of handling time and 3 to 7 days of delivery

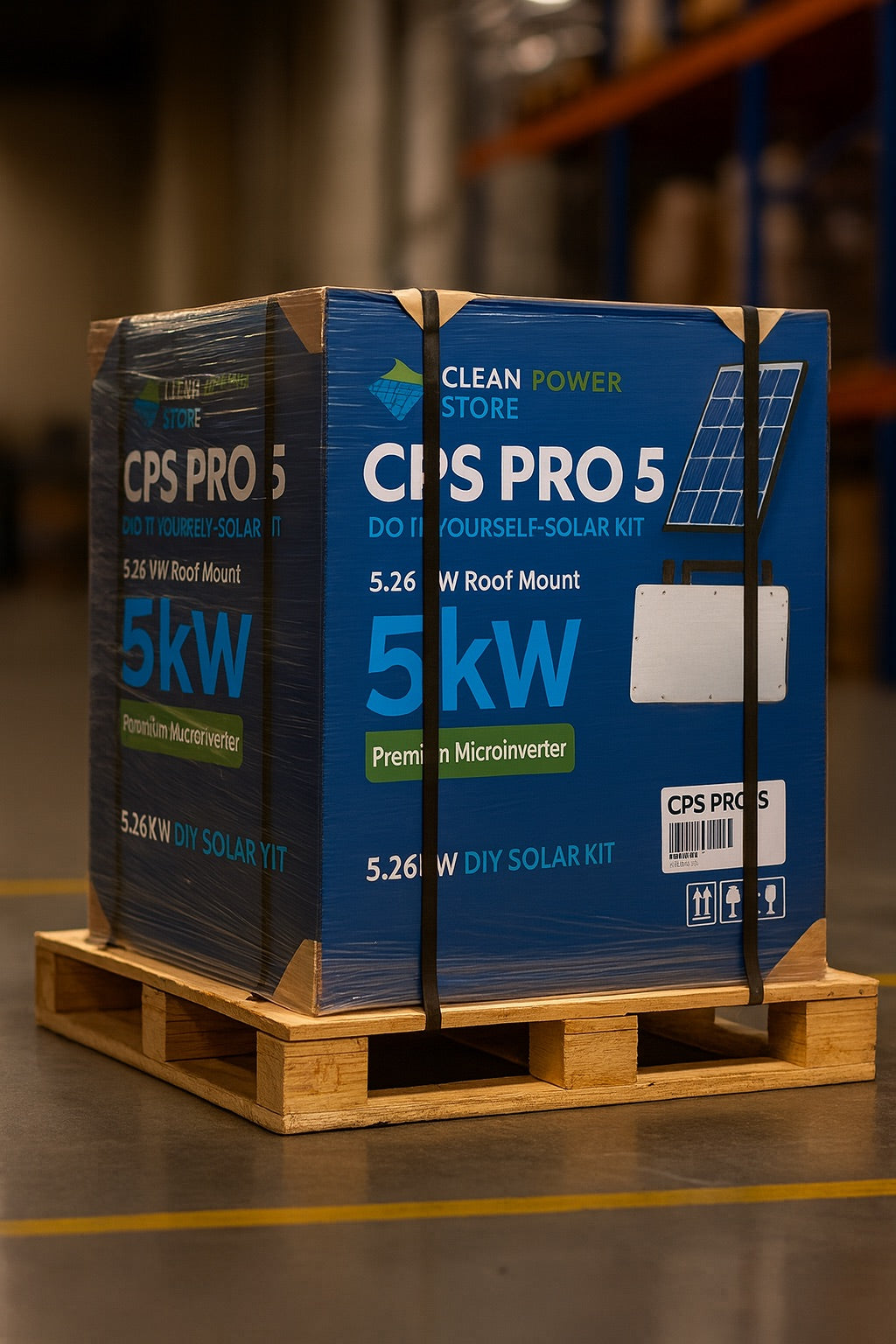

CPS Pro 5 kW DIY Solar Kit

Premium all-black system with Luxen 405W panels & Hoymiles microinverters

Power your home with a premium DIY kit built for speed, safety, and sleek aesthetics. The CPS Pro 5 kW bundles high-efficiency Luxen 405W all-black panels with Hoymiles HMS-1500-NT microinverters and a complete racking package—all designed for a smooth installation and inspection-ready results.

With permit-ready docs, labeled components, and CPS tech support, this kit takes the guesswork out of going solar.

Why Choose This Kit?

13× Luxen 405W Panels

4× Hoymiles Microinverters

25-Year Panel Warranty

Everything Included

☀️

5.2 kW Solar Array

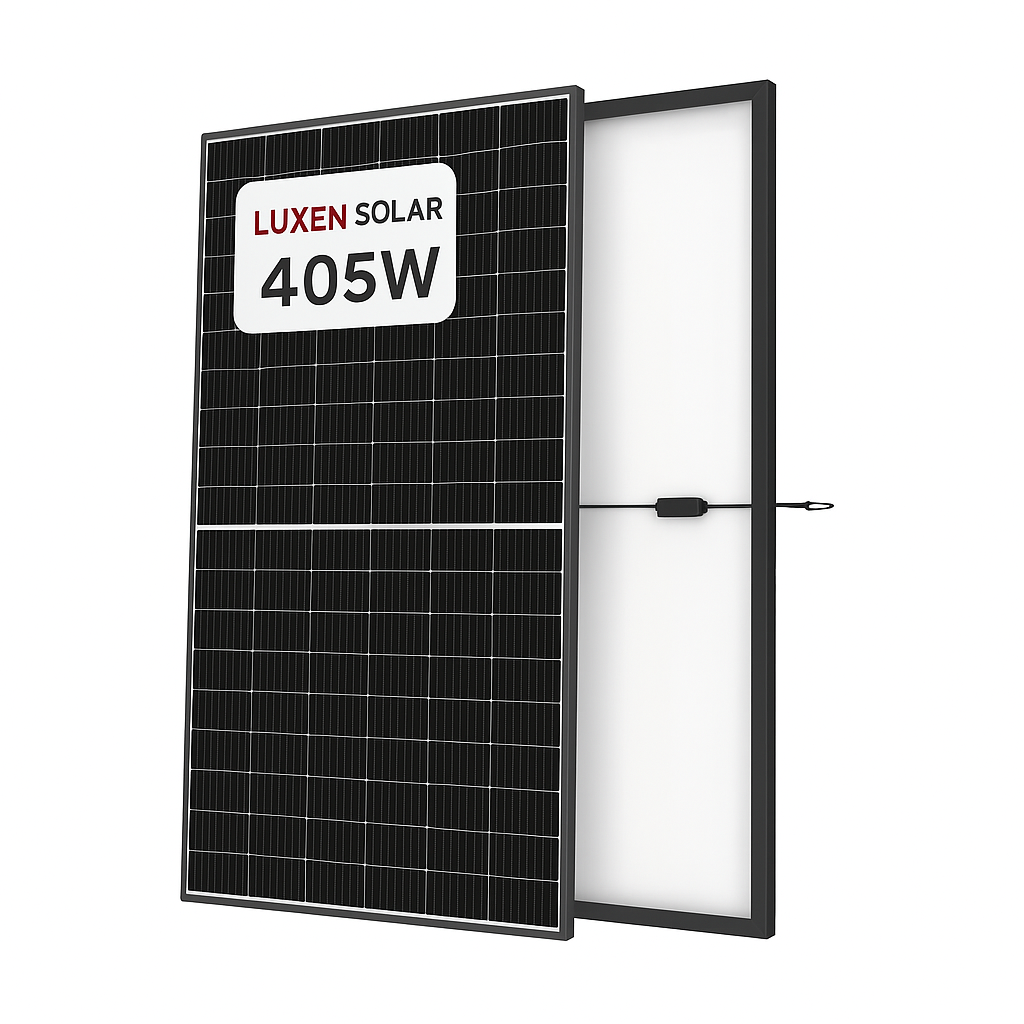

13× premium Luxen 405W all-black monocrystalline panels for a sleek, high-output system.

⚡

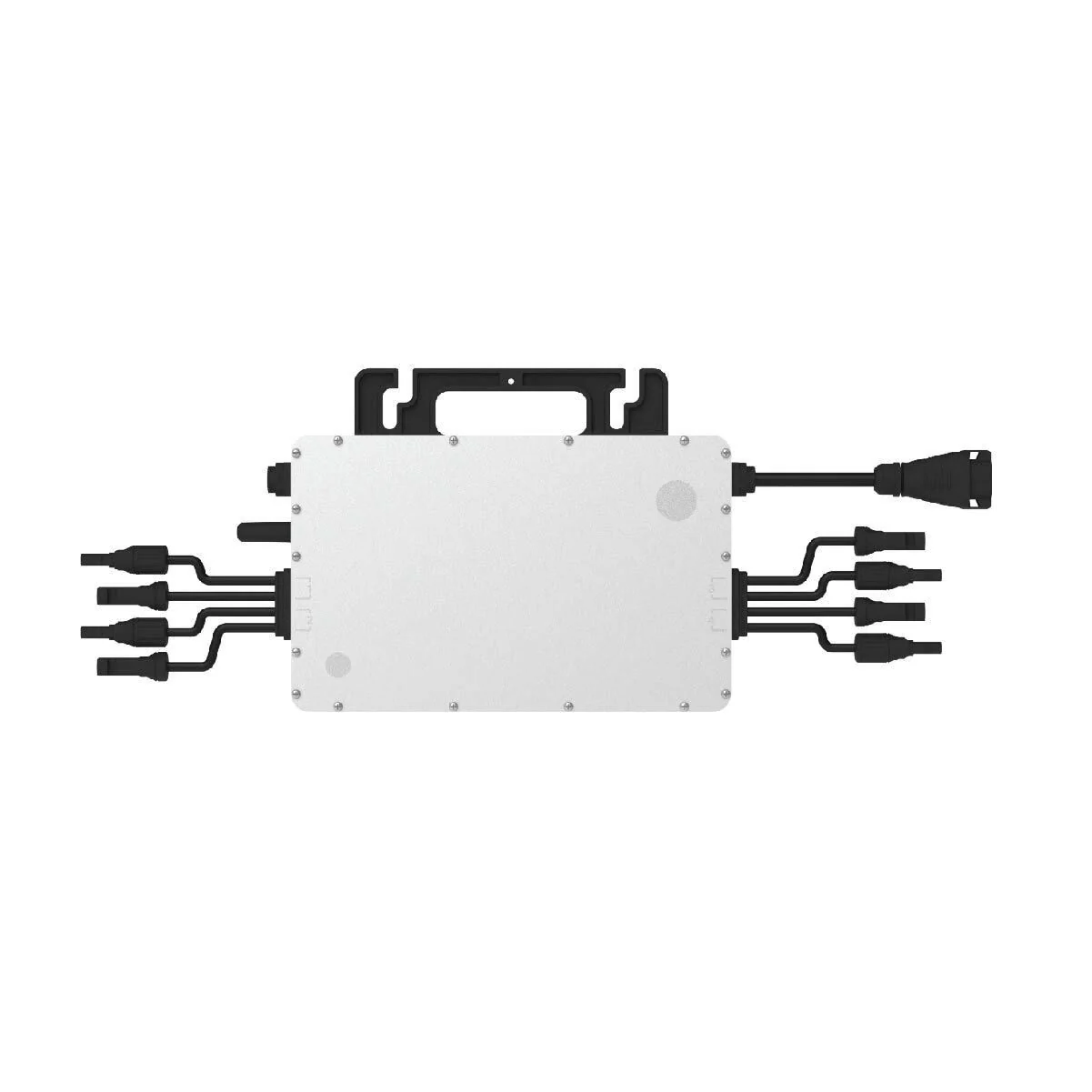

Hoymiles HMS-1500-NT

4× 4-in-1 microinverters with panel-level monitoring and room to expand.

🏠

Complete Racking System

Super Solar rails, L-feet with butyl flashing, and all necessary clamps for a weather-tight install.

📋

Permit-Ready Package

Includes NEC labels, 30A disconnect, and backfeed breaker to simplify approvals.

📱

DTU-Pro S Monitoring

Wi-Fi gateway for real-time performance tracking via web and app.

🛠️

Full BOS Kit

All cables, tools, grounding hardware, and wire management included.

System Design

☀️ Total Output

5.2 kW

📈 Expansion Ready

3 Inputs Open

Technical Specifications

High-performance components for a turnkey solar solution

Solar Panels

Model:

Luxen 405W Mono

Quantity:

13 (5.265 kW)

Warranty:

25 years

Inverter System

Microinverters:

4× Hoymiles HMS-1500-NT

Monitoring:

DTU-Pro S (Wi-Fi)

AC Disconnect:

30A non-fused

Racking & Hardware

Rails:

Super Solar 140"

Mounts:

RAD L-feet (butyl)

Breaker:

2P 30A (SquareD compatible)

What You'll Still Need

1 Roof layout & permitting (AHJ requirements vary)
2 Conduit/wire lengths for your home run
3 Service-panel space and utility approval

FAQs

Frequently Asked Questions

Can I expand this system later?

Yes! The HMS-1500-NT microinverters have 4 inputs per unit. With the suggested 4-3-3-3 panel layout, you'll have three open inputs for future expansion.

Is this kit NEC compliant?

The kit includes all labeling, disconnects, and grounding hardware commonly required for NEC compliance. Final approval depends on your local AHJ and installation method.

Can I use this for ground-mount?

While optimized for roof-mount, you can adapt the system for ground use by replacing the racking components with ground-mount hardware.

Ready to Go Solar?

Build your premium 5 kW system with confidence using the CPS Pro DIY Kit

Complete kit | Permit-ready | CPS support included
