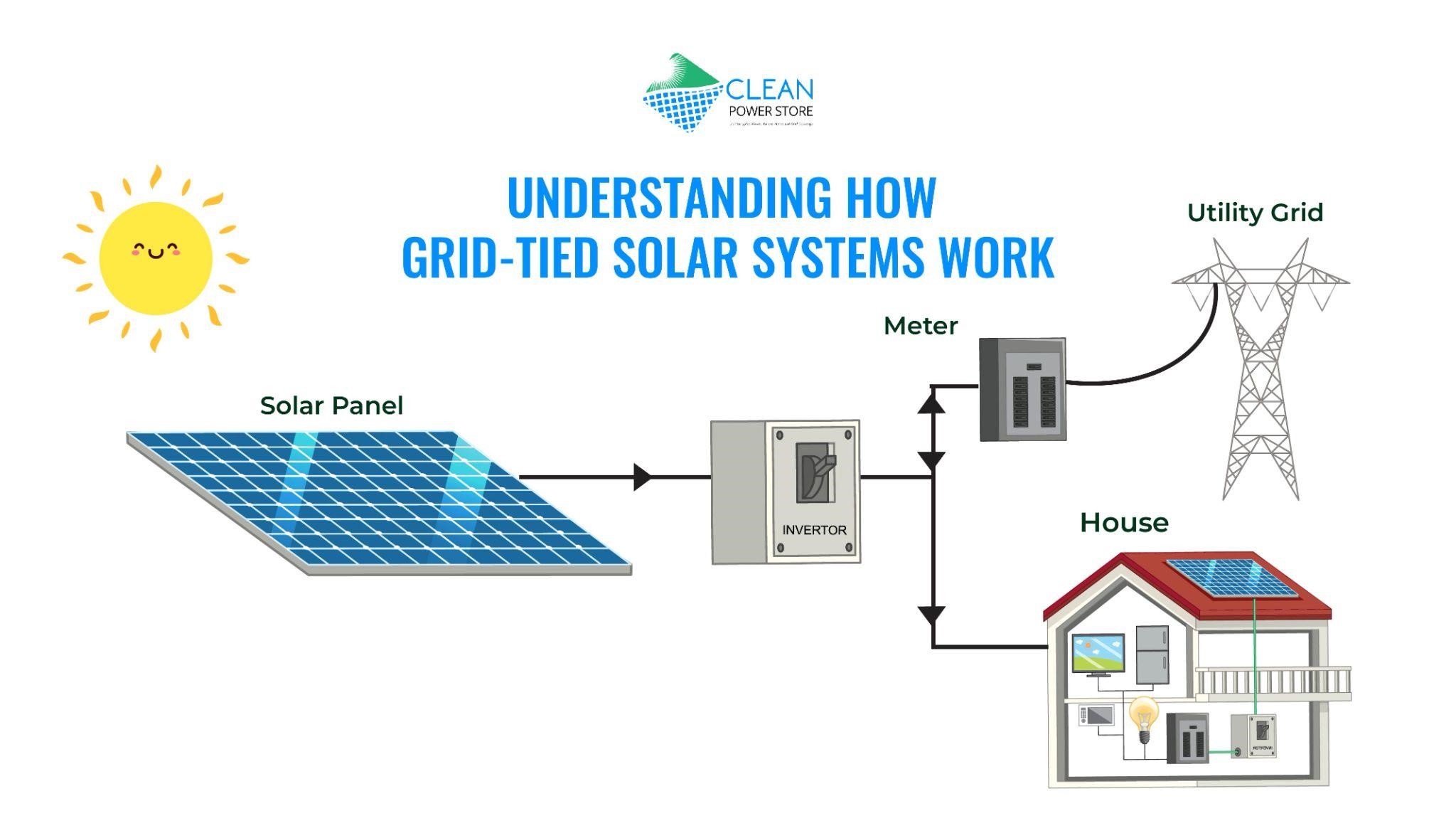

Understanding How Grid-Tied Solar Systems Work

Introduction

A solar energy system that can easily transform the energy from the sun into useful energy. but, here too we need to look into some proper means of transformation as we need it to catch up to our purpose of getting a beneficial resource of energy which is solar energy. However, one such system is valid in the form of a grid-tied system. Such a system is one of the reliable resources that makes it easy for solar conversions. Another thing that counts is the easy way of working. So, let us proceed with the article to learn more about such a system.

What is a Grid-Tied system?

In the world of solar whenever you hear about any such terminology then you should make it certain without any doubt that such a system is connected to the grid. Here, we come across two of the benefits. One is valid in the form of excess energy generated by solar transferred to the grid. While others are helping in case of power failures.

For example, there might be scenarios when the solar system does not meet the energy criteria, so in such cases, we come across the process of net metering. One of the credible ways that help with energy supply from the utility grid whenever there arises an energy crisis by solar.

Important components of a Grid-Tied system

Before going for a discussion into the grid-tied system we need to go through some of the essential components in the case of solar. One such component is present in the form of solar panels. But, this is not enough to help you with the formation of a whole energy-generating system. However, there are some other components that we should fully take into consideration. Some of these are discussed below.

● Inverters

It is a fact that we cannot use the direct current from the solar panels we need to change it into a useful form before we get an energy supply. Another reason is that this current is in extremely high voltage so it cannot be used as such.

However, we convert the direct current into alternating current to use it effectively. Now, moving onto the inverters there are many types. But, we come across two of the major ones. One is a string inverter while the other one is valid in the form of a microinverter.

Firstly, the string inverter is there and it’s just the size of a shoebox in shape. Yet, one thing is valid it is installed closer to the panels but not directly onto the solar panels. Moving on the next to we have microinverters.

These are used just like enzymes as they speed up the performance of solar panels. Anyhow, by size, the microinverters are smaller. However, these are installed underneath each panel. So, when it comes to string inverters then we need one too many. But, with microinverters, we need an individual microinverter for a separate panel.

● The Distribution Panel

Our major purpose is to convert DC into AC. But, once it is achieved then we go to another phase which is equal distribution. For this purpose, we use a conductor that helps to carry the electricity from the inverter to a distribution panel.

Here, the basic purpose of the distribution panel is the allocation. For example, you are living in a building having solar. However, for there, the distribution panel will effectively distribute energy to power up different appliances accordingly. But, here too we come across a benefit.

Anyhow, if your system of solar produces more electricity than you are using then the distribution panel will send the energy to the utility grid. However, you can get compensation for that according to your peculiar state.

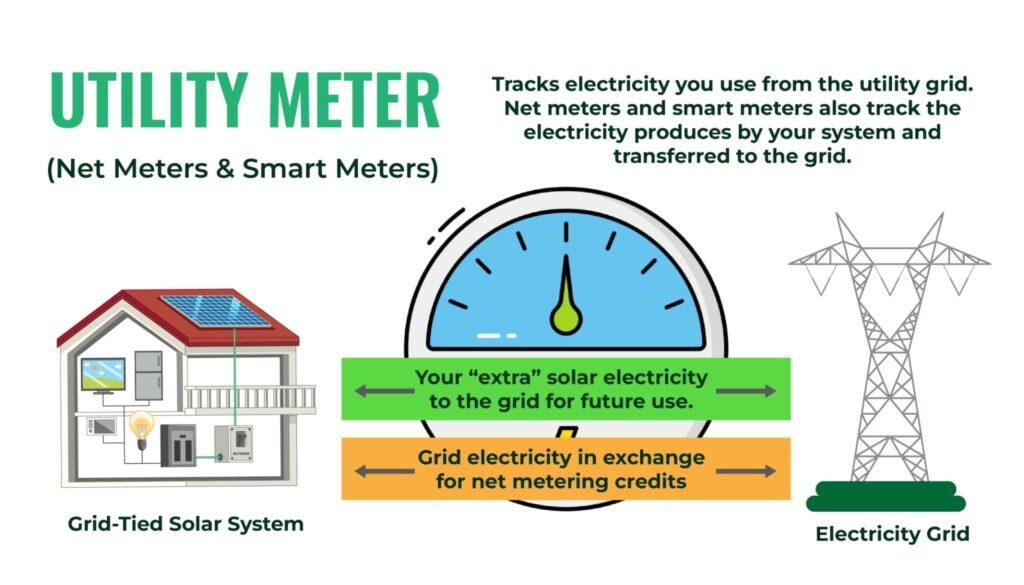

● Utility meter

The basic purpose of such a meter is to track the electric flow. It works in two ways. One is in the form of supplying energy to the grid while the other one is getting energy from the grid. However, in the former case, you are getting paid while in the latter case, the utility will charge you.

Yet, there is an important thing in the form of a type of electric meter. Therefore, when it comes to utility then we come across one important type which is the utility meter. The basic task of utility meters back in history was to measure electricity consumption.

Here, the thing that matters the most is in the form of the direction running from property to the power company. But, after the installation of solar just this traditional method is not enough you may need smart or net meters. Such modern systems proceed in a bidirectional manner. Thus, these work by relying on net energy. Thus, such an energy system works by using net energy used and the difference of energy produced by the system of solar.

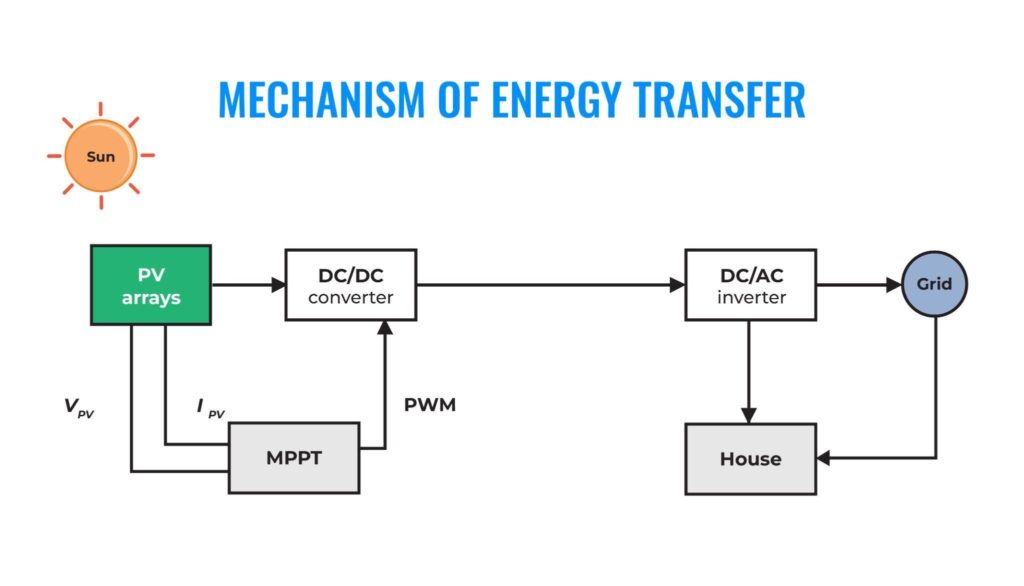

Mechanism of energy transfer for a Grid-tied system

Such a methodology works by a to-and-fro system. Here, all you need is a grid-tied system. Therefore, with a connection to the utility grid, you can easily explore a better way of compensation. For example, suppose your system generates energy that exceeds your normal energy requirements.

However, this energy is well-spent and is then forwarded to the utility grid. Therefore, in return, you get paid by the process that is known as net metering. To grab this you just need to be a resident of a state with net metering.

Different states in the USA have different credits for net metering. However, if you want to get better insights into net metering then you can access our blog on net metering. Another thing that counts is the one-to-one system.

For example, let us consider that you are feeding 100kwh to the system. However, you do not need to be worried as this amount will be fed to the utility, and in return, you will use this energy from the utility grid without any extra charges. So, isn’t it a worthy thing to consider?

Advantages of having a Grid-Tied system

Saving money to the fullest

The process of a grid-tied system is already a savior of money. Here, we come across an easy mechanism that works as a wonder. Anyhow, following the process of net metering, we can save our money to a greater extent. It is a fact that a system of solar helps to generate excess energy mostly, but the wise thing to do is to use this energy beneficially. So, there we use the metering process to get an advantage from this excessive energy.

Utility grid for Grid-Tied system

A grid-tied system is incomplete without a utility grid. It acts as a storage device that helps you with energy demands when needed. Here, the work proceeds with a full-fledged system where there is no fear of energy losses. So, you can easily use it whenever you find the need to do so.

Frequently asked questions

What is the main advantage of a Grid-Tied solar system?

One of the promising advantages lies here in the form of lesser costs of functioning. As there are no extra costs of equipment we come through an advantageous system that saves our costs effectively.

Can a Grid-Tied inverter work without a grid?

Ordinarily, a grid-tied inverter is dependent on a grid connection for its operation. Its primary function is to transform the solar panels’ direct current (DC) into an alternating current (AC) that aligns with the grid’s standards, allowing any surplus energy to be directed back into the grid. Should the grid experience a failure, the majority of grid-tied inverters are programmed to cease operation. This precautionary step is taken to avoid the risk of inadvertently sending electricity back into the grid, which poses a hazard to utility workers tasked with grid maintenance.

Conclusion

At the end of this article, we get a closer look into the system of grid-tied functioning. The discussion by types and equipment contributes towards the decision to own such a system. Especially, the discussion of the process of net metering highlights the importance of having such a system. So, if you follow this article then you can easily get a better understanding regarding a grid-tied system.
